Promiced (IPA: /ˈpɹɑ.mɪst/)
single transistor optimization software




Features

• promiced lets you calculate bias settings and device dimensions in such a way that transistor performance is tuned or optimized for each individual transistor in your circuit schematic. This tuning/optimization can be done operating promiced as stand-alone software or seemlessly embedded in some IC design suites. In either way, promiced always uses its own dedicated calculation kernels.

• promiced lets you sweep various bias settings, component values or environment parameters in many ways --- constrained and unconstrained --- to enable you to optimize your transistors. Constrained sweeps or optimizations are those that keep a constant (target) current, transconductance, ...

• An extended operating point overview is given, including

  • large signal operating point properties
  • small signal operating point properties
  • loaded y-parameters, s-parameters
  • spread, noise and distortion performance
  • generation of equivalent circuits

• Many transistor models are included, including the SimKit models, PSP, BSIM models and more. Also compound models --- consisting of at least one transistor with components such as diodes, juncaps, passives, ... are supported.

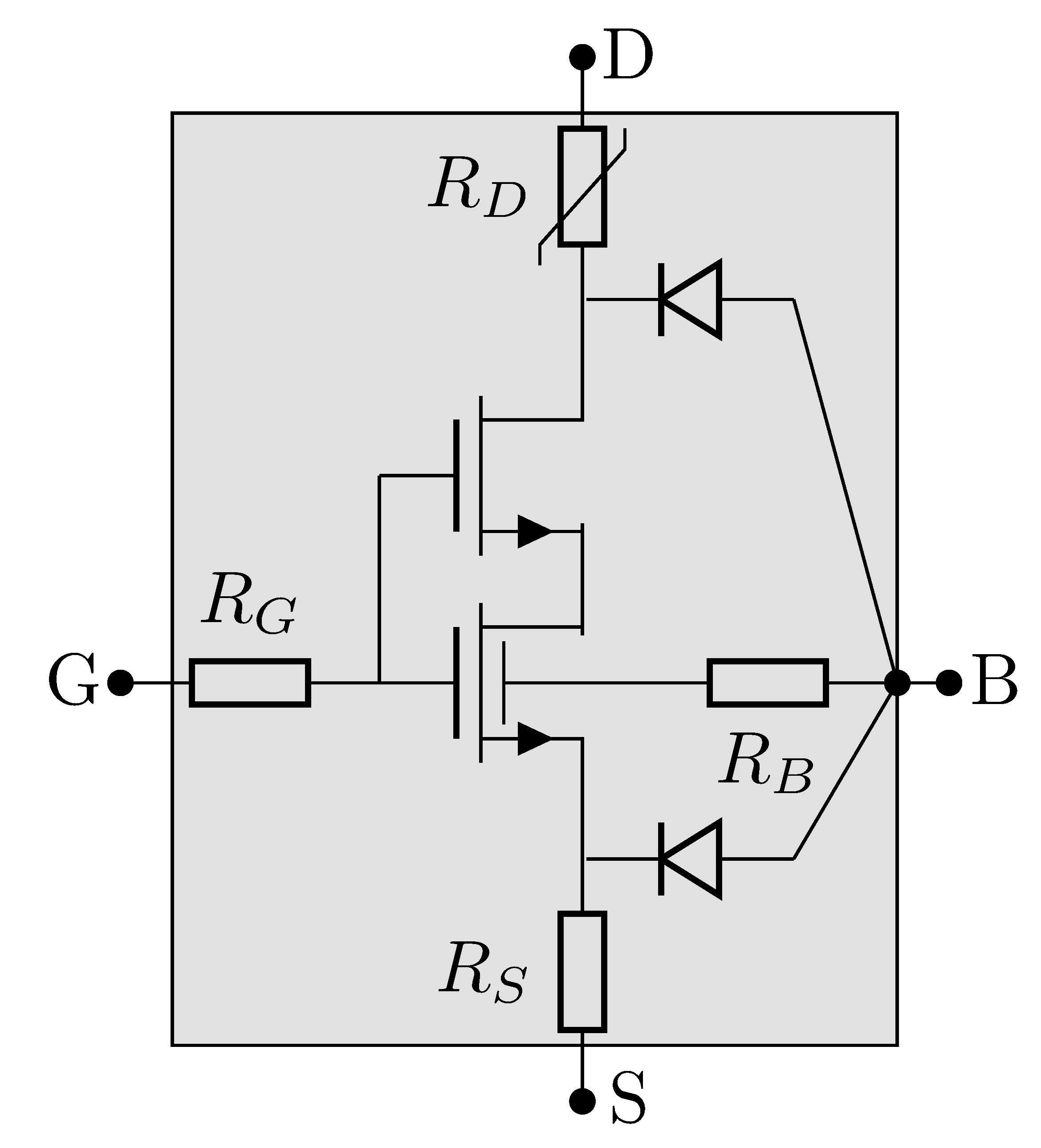

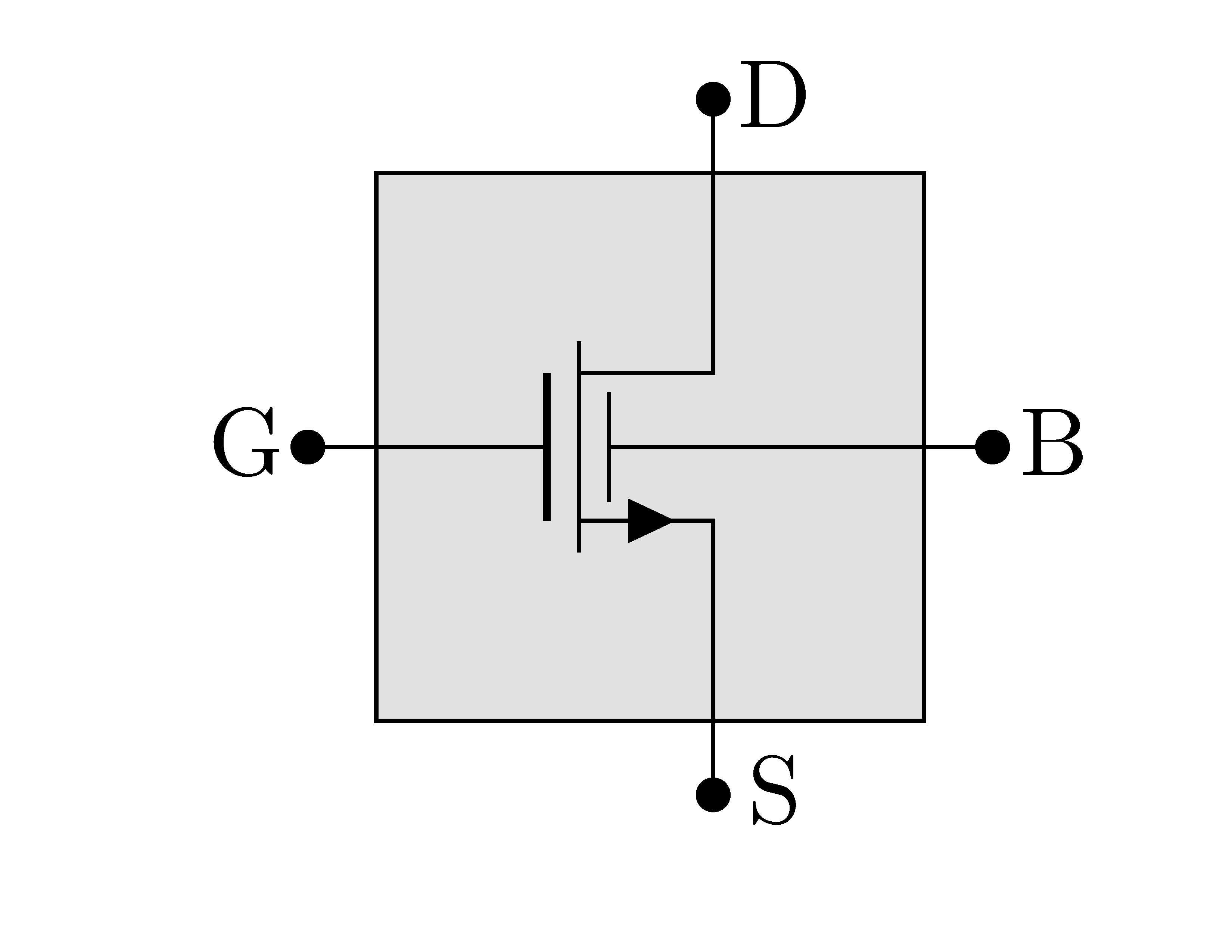

  Promiced handles (left) bare transistor models (mid) transistor models extended with some passives and diodes (c) models including a variety of components; the latter two are denoted as compound models.

  For any MOS transistor, promiced outputs OP data, noise properties, spread numbers and more. For the compound models both the OP data of all devices in that model are listed, as well as the equivalent OP parameters for the complete model. The latter is derived from background solvers.

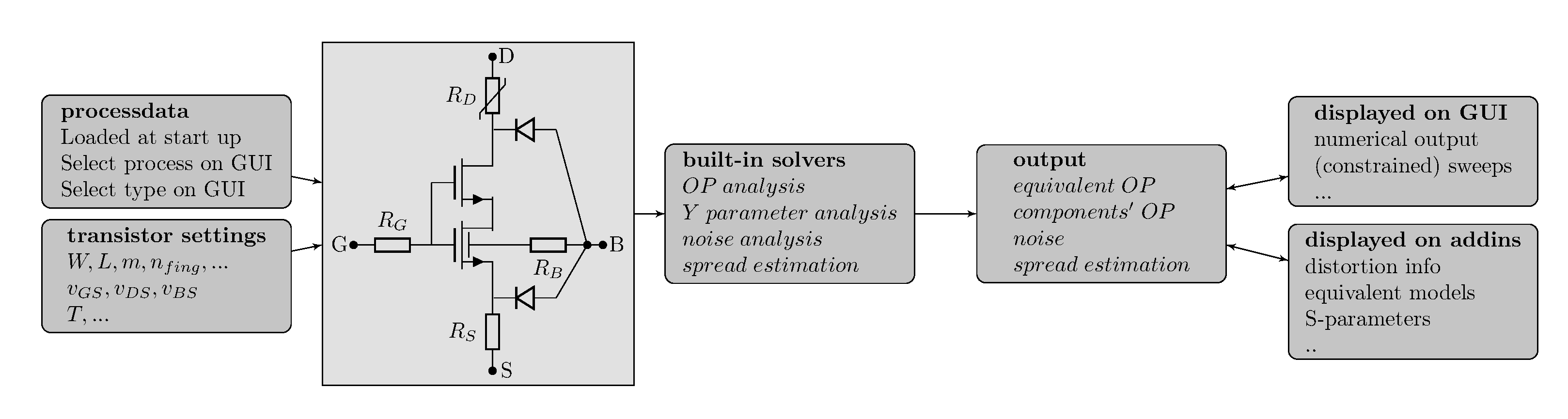

  Promiced's calculation flow to get output: from technology data and bias settings to graphical and numerical output. For compound models, a number of (background) solvers and kernels are employed.



• Many extra calculation possibilities are provided to enable custom optimizations. The screenshots below show some of the calculation features by some promiced addins: IP2 and IP3 for a constrained sweep at 900 MHz and the impedance and equivalent capacitance of a decap-switched MOS transistor assuming a lumped model equivalent. Promiced's addins lets you quickly optimize individual transistors for various tasks in your circuit.

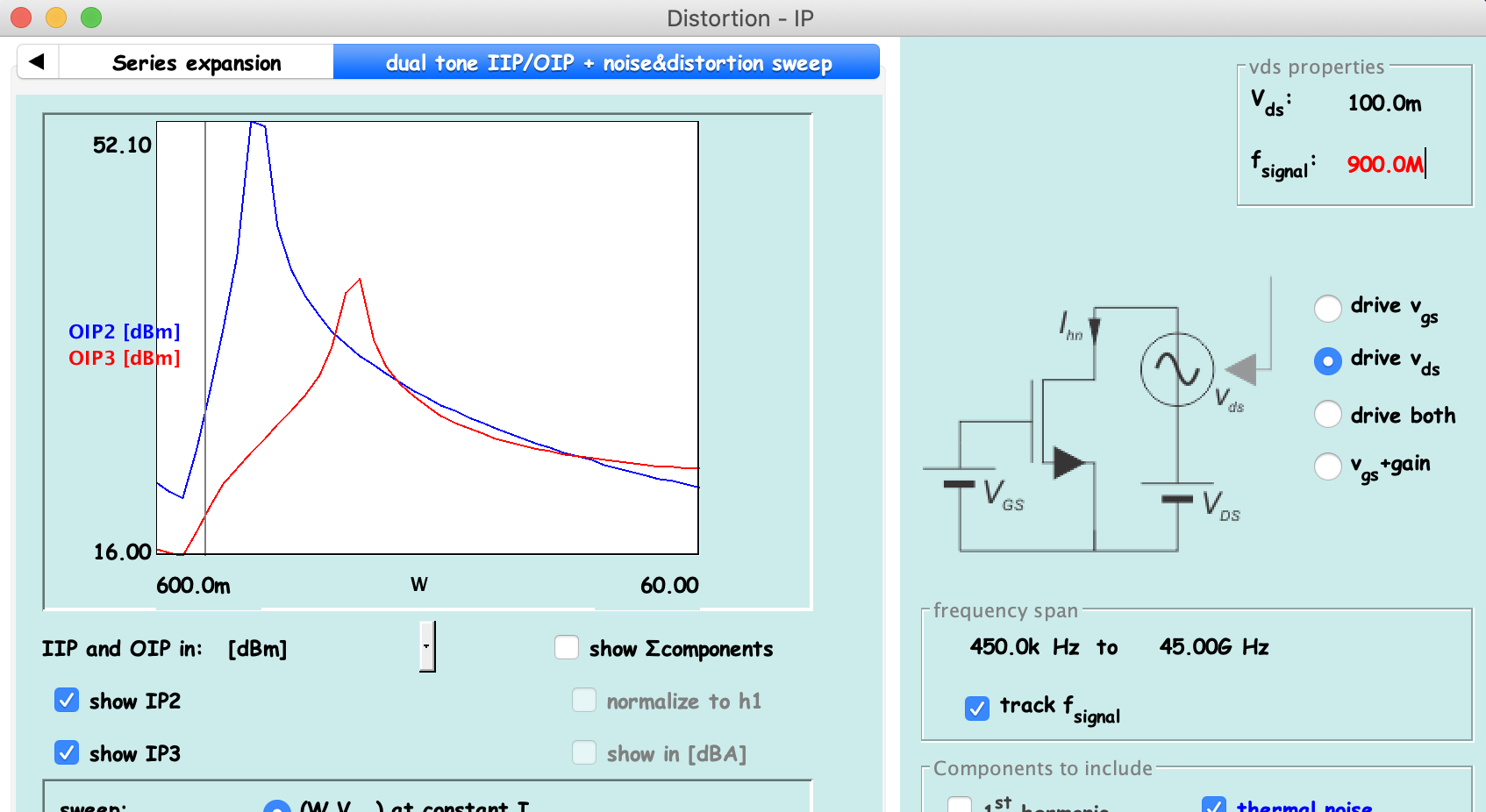

  Promiced's distortion addin provides data on distortion in your circuit,
  on modelling non-linearities and can be used to optimize performance.


  Promiced's switched-as addin lets you calculate and optimize for non-common source configurations

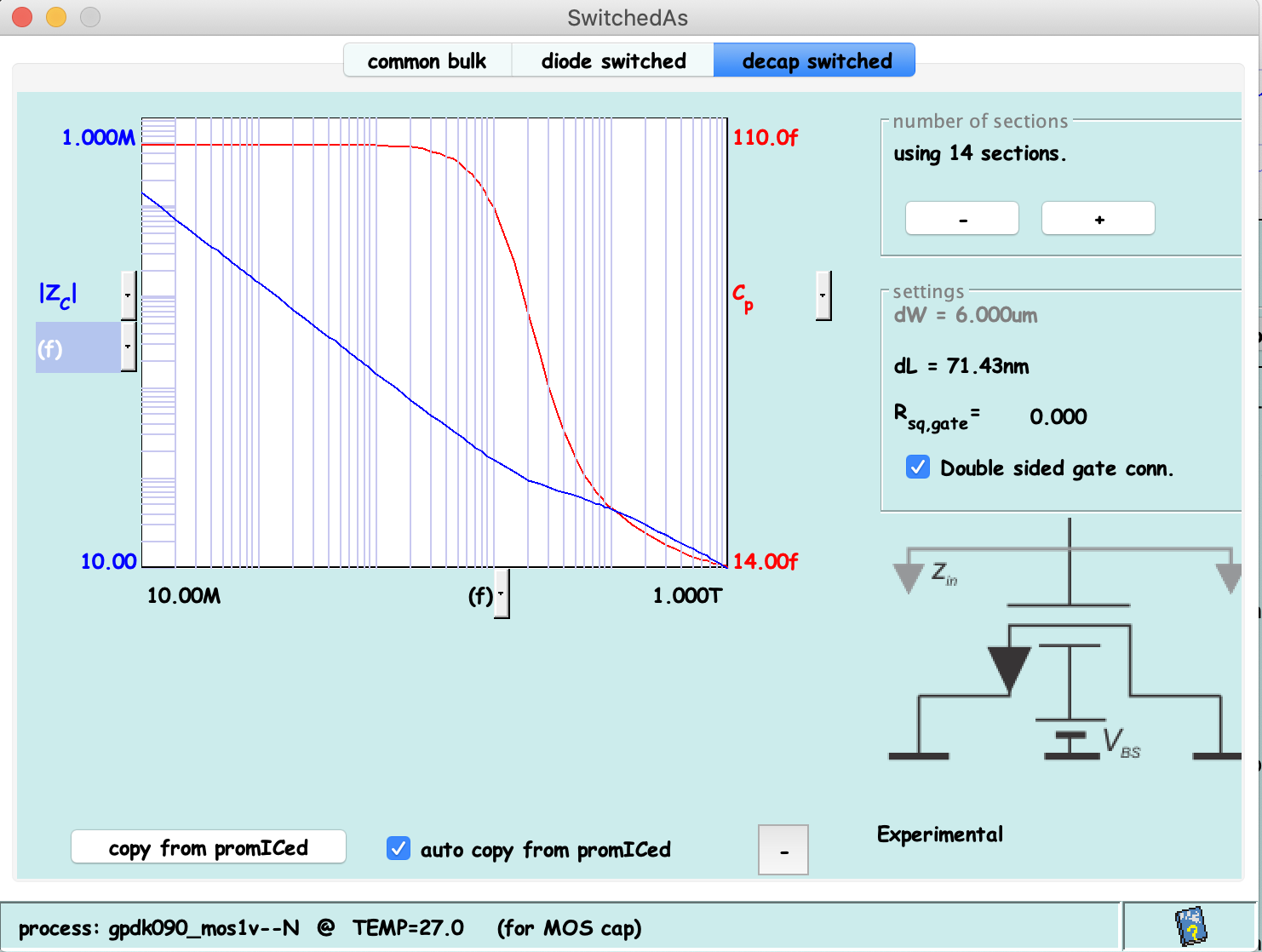

  in the figure, the equivalent impedance and capacitance are shown for an MOS transistor, as function of frequency. For this mode, a lumped equivalent is constructed/sbackground calculated.


• A converter to get your process data in promiced. The default converter converts from Spectre or (H)Spice process data (scs and lib files).

• Promiced does not feature a "run" or "calculate" button: after entering or changing any input value the calculations and sweeps are directly done. Real time. With almost no delay.
